Solar Energy Storage System 48V 100Ah LiFePO4 Battery Telecom Base Station Backup

Brand Name : GTECH/OEM

Model Number : 48V 100Ah

Certification : CE, ROHS, IEC, UN38.3, MSDS

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per month

Delivery Time : around 20 working days

Packaging Details : Carton, Pallet

Application : Solar energy, Telecommunication, Golf carts etc

Capacity : 4800Wh

Charge Rate : 1C

Cycle Life : ≥5000 times

Discharge Rate : 1C

Material : LiFePO4

Protection : Overcharge, Overdischarge, Short Circuit

Working Temperature : -20℃~60℃

Contact Now

Solar Energy Storage System 48V 100Ah Telecom Base Station Backup LiFePO4 Battery

Lithium LiFePO4 Battery Pack 100AH 150AH 200AH Manufacturer

Description:

G-tech Lithium battery is a high-tech product developed for the requirements of new backup power supply and household renewable energy storage. Built-in intelligent BMS to protect the battery pack at any time and prolong its service life, modular design enables parallel installation for larger power back up, all batteries manufactured with A grade cells, 10 years life span design.

Main Features:
1. Cells cycle times 6000 cycles(+25%C 0.2C 80% DOD)

2. Long lifespan: 5 years warranty, 10 years life design
3. 4U rack-mount chassis design is easy for parallel expansion and maintenance
4. Smart BMS system to optimize the performance
5. Communication: RS485/SNMP/Wifi/Bluetooth, Compatible with different brand of solar inverter and chargers
6. All around protection: such as SOC/SOH/ Anti-theft function etc
7. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
8. Maximum of 16 battery packs can be connected in parallel
9. With front display to know effectively the status of the batteries

10.Communicate with mainstream inverter: Growatt/Voltronic/GOODWE/Pylontech/Kstar/MUST etc.

MODEL # LFP 24-100 LFP 48-50 LFP 48-100
SPECIFICATION
Battery Type LiFePO4 LiFePO4 LiFePO4
Battery Model 25.6V100AH 51.2V50AH 51.2V100AH
Nominal Capacity(25℃,0.2C)WH 2560Wh 2560Wh 5120Wh
Adjustable working voltage(Vdc) 22.4～29.2V 44.8～58.4V 44.8～58.4V
Folat Charge Voltage(Vdc) 28V 56V 56V
Max.Continuous discharge current(A) 100 100 100
Max.pulse discharge current(A) 150A 1Sec. 100A 1Sec. 150A 1Sec.
Max.Continuous charge current(A) 100 50 100
Cycle life(+25℃ 0.2C 80% DOD) ＞5000 Cycles ＞5000 Cycles ＞5000 Cycles
Cell Equalizer Current(A 0.1～5A Max.(optional) 0.1～5A Max.(optional) 0.1～5A Max.(optional)
Terminal M6
Storage duration 6 months at 25℃
Safety standard IEC62619,UN38.3,MSDS,CE
Communication function RS484/UART/SNMP/Wifi/Bluetooth
PROTECTION
Protection Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection
AMBIENT
Noise(dB) ＜40dB(1 meter)
Working temperature -20℃～+60℃
Humidity 0～95%(no condensation)
Altitude(m) <3000
DIMENSION
L*W*H( size)mm L405*W483*H178mm L655*W483*H178mm
L*W*H(package size)mm L440*W518*H213mm L690*W518*H213mm
Net Weight(Kg): Approx.35kg Approx.72kg
Gross Weight(Kg): Approx.39kg Approx.78kg

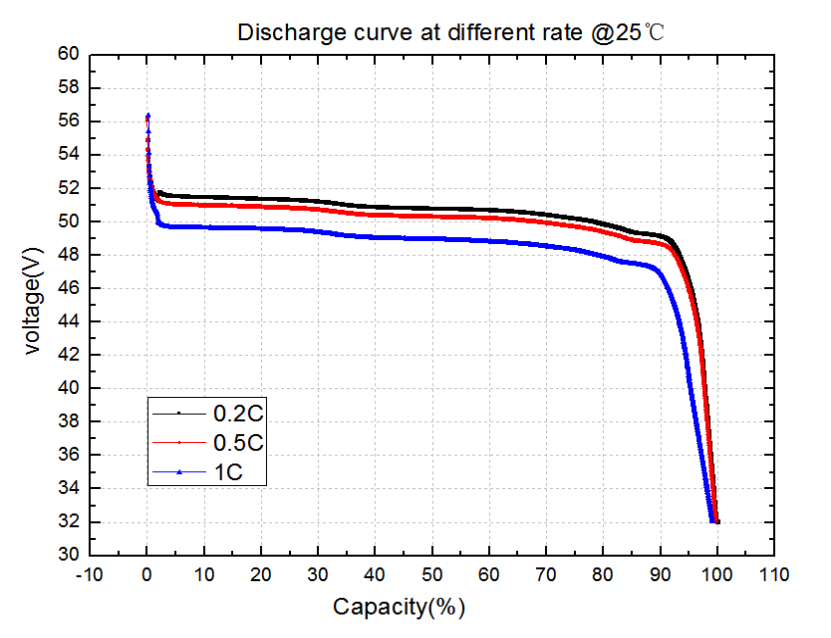

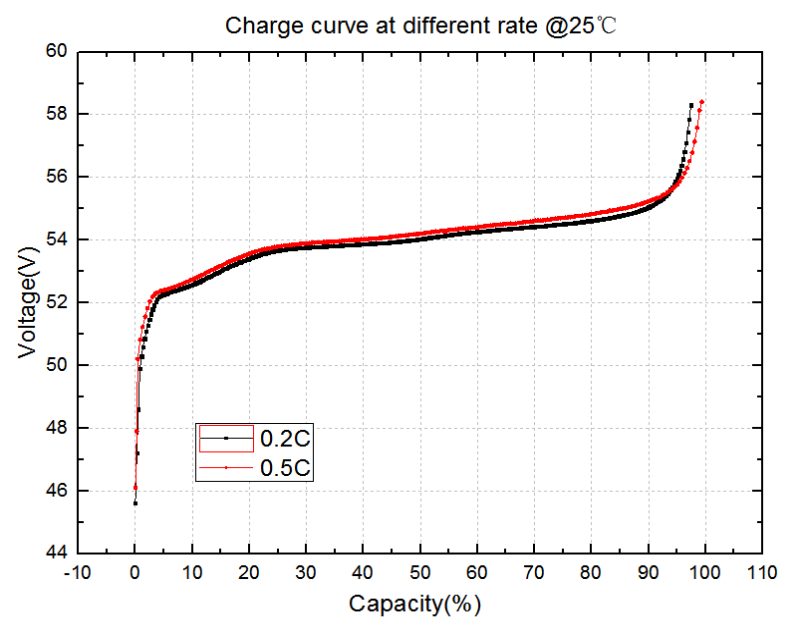

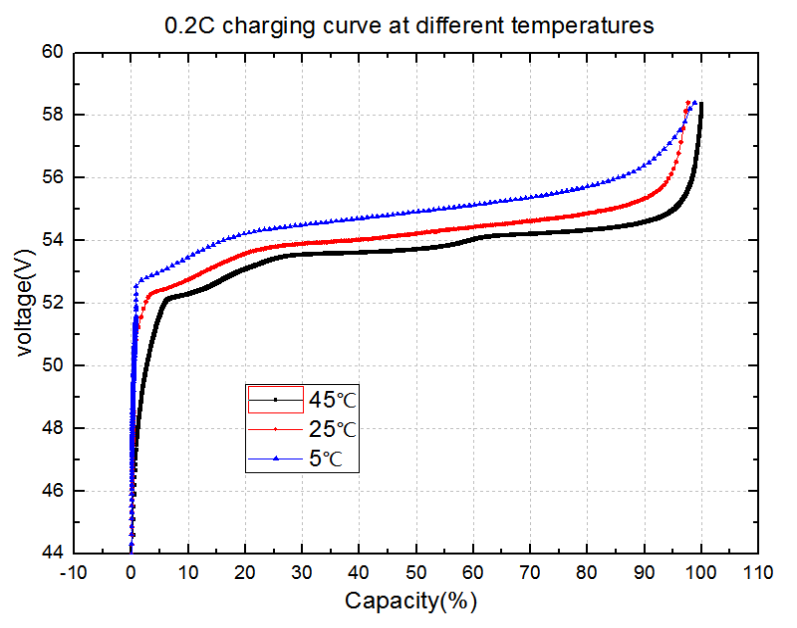

Charge and Discharge Curve
Solar Energy Storage System 48V 100Ah LiFePO4 Battery Telecom Base Station Backup
Solar Energy Storage System 48V 100Ah LiFePO4 Battery Telecom Base Station Backup
